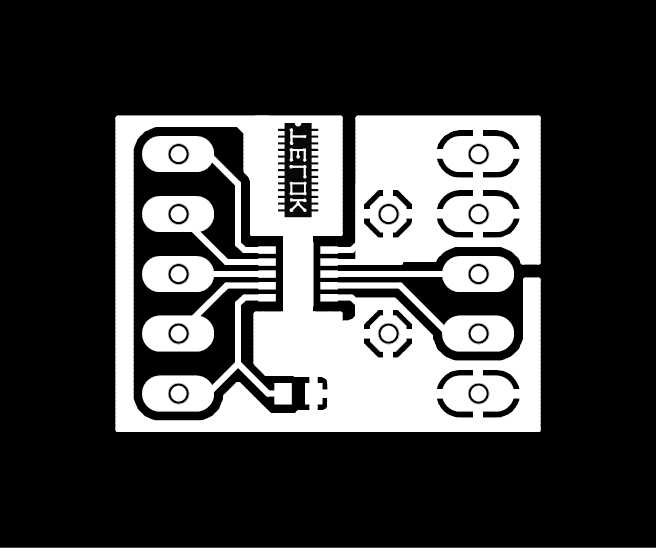

Simple breakout-board for Texas Instruments BQ24012 Li-ion charge IC.
Also includes a pad for Rset and vias for shunt capacitor (200mils).
Components:
1x BQ24012
1x Rset resistor ~900R-9K09
1x Cshunt capacitor ~100n-1ยต
2x 5x1 0.1" Pitch Pinheader
All top-layers on images and pdf-files are mirrored.
All copper areas are white with via alignment whites.
Images are 600ppi and pdf-files are 1:1 A4 vectors.
Pcbs on pdf-files have 30mm margin on top and left.
